Symmetrical illuminating
Low energy consumption
High light efficiency
Super long life
Easy to install
Low maintenance
Safe and reliable

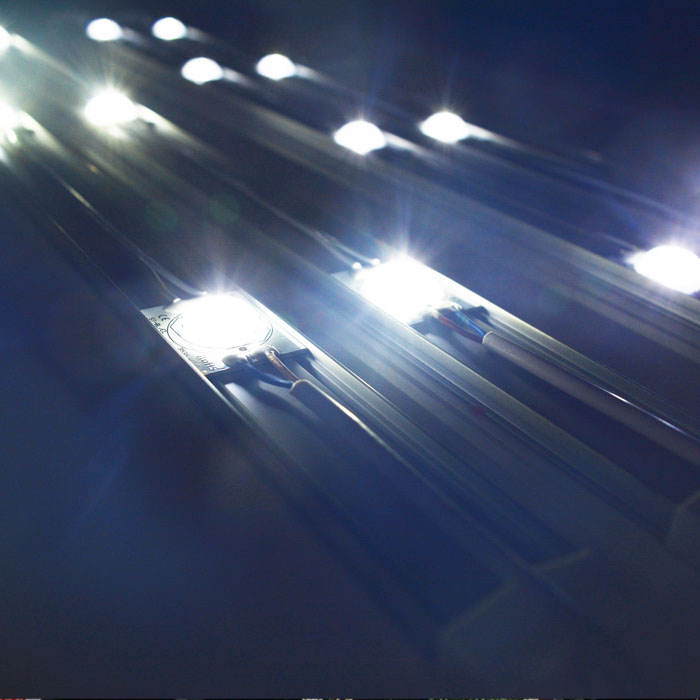

Light Box LED Backlight Bar
The light box usually uses fluorescent lamp as backlight lighting before. But the fluorescent lamp often causes streak and dark area in the surface of light box. Its advertising effect is not good. What’s more, the length of fluorescent lamp is single, not customized. Its installation in the large size light box is very difficult. Light box LED backlit bar not only solve above-mentioned shortages, but also save energy 70% than the fluorescent lamp. These years the light box LED backlight bar becomes more and more popular.
Advantages:

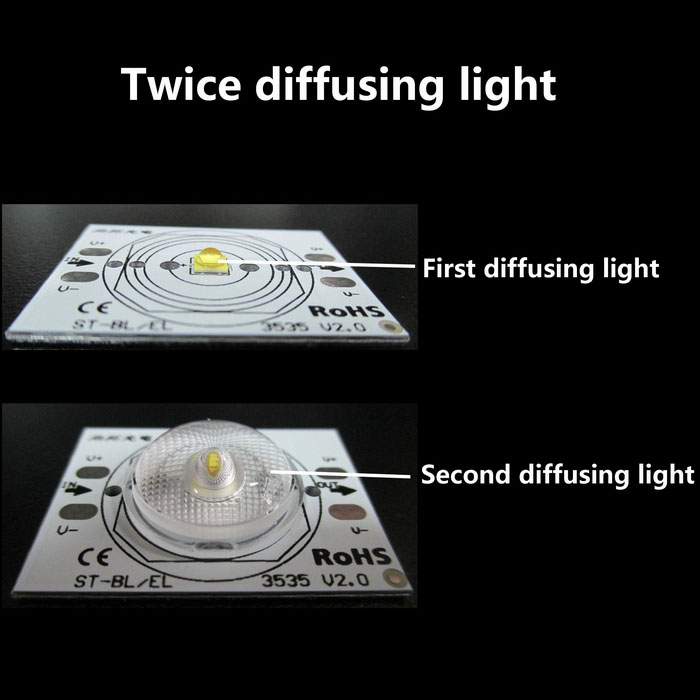

Symmetrical illuminating: specialized super-wide-angle diffusing lens, twice diffusing light design, light angle up to 175 degrees
Low energy consumption: only about 40W/sq.m., 20-30% of conventional fluorescent light box
High light efficiency: imported high-grade Samsung LED chip, light efficiency up to 120lm/W
Super long life: constant current working mode, triple heat dissipation design, more than 50000 hours

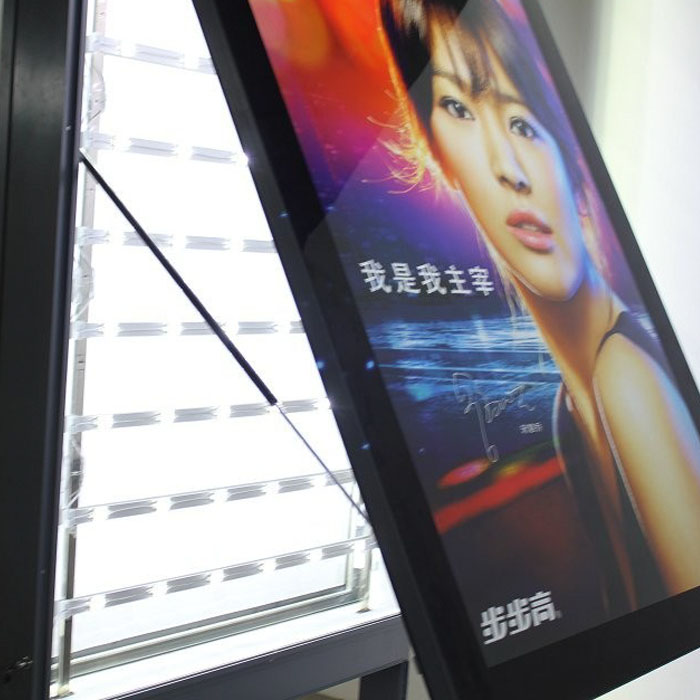

Easy to install: modular design, male and female head connection, high quality aluminum radiator, customized strip length
Low maintenance: 3 years warranty, almost no maintenance during the effective life
Safe and reliable: waterproof, IP65 available
Product detail:
|
Model Number: |
ST-BL20-2P |
|
Working Type: |
Constant current, 0.7A |
|
LED chip: |
Samsung SMD3535 LED |
|
LED Power: |
2W |
|
Color Temperature: |
6000 ± 500K |
|
LED distance: |
20cm |
|
Lifetime: |
More than 50,000 hours |
|
Unique feature: |
Constant current working mode, specialized super-wide-angle diffusing lens, twice diffusing light design, modular design, male and female head connection |
|
Distance between LED and backlit poster: |
Not less than 8cm, suitable for 10 -- 25cm thickness light box, especially for mega indoor or outdoor advertising light box |
|
Waterproof: |
Yes |
Specification:
|
Art. No. |
Color
Temperature |
Constant Current (A) |
Light Angle |
Luminous
Flux |
LED Qty |
Length |
|
ST-BL20-600 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
3 |
600 |
|
ST-BL20-800 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
4 |
800 |
|
ST-BL20-1000 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
5 |
1000 |
|
ST-BL20-1200 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
6 |
1200 |
|
ST-BL20-1400 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
7 |
1400 |
|
ST-BL20-1800 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
9 |
1800 |
Note: Other sizes are available as demand.
Application:

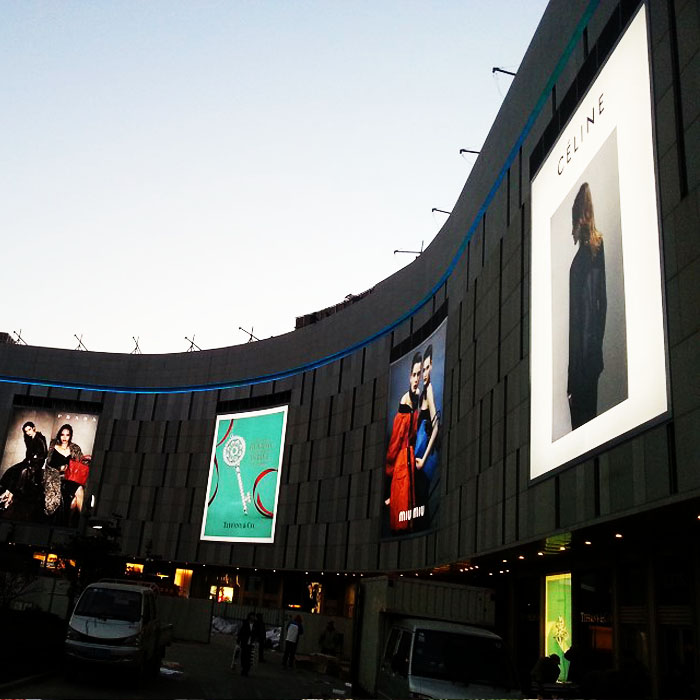

Backlit sign, Vinyl banner light box, outdoor huge advertising light box, cinema light box, backlit billboard, backlit signs, single-sided/double-sided light box, illuminated signage, etc.
Our service:
Pre-sale consultation, after-sale
service
Trouble analysis, maintenance guidance
Accessories timely supply
Graphic printing
FAQ :
1. What about the lead time?
A: Usually it is 3 - 5 working days for the sample order, and 7 - 10 working days for bulk order.
2. If I have a question, how could I contact you?
A: You could send e-mail to us.
Suntole/Lepu specializes in high-quality, cost-effective illuminated signage. We provide light boxes, illuminated signage, backilit/edge-lite LED bars, LED light panel, display and fixture solutions.
