LED Bar For Backlit Billboard

Backlit billboard is very eye-catching at night, because it has large format poster and high bright. SUNTOLE LED bar is developed for backlit billboard. Strong aluminum radiator could be fixed on the billboard tightly by screws. Modular LED strip not only shortens the installation time, but also make the replacement very simply. All users are impressed by the illuminating effect and durability of the LED strip for backlit billboard.

Technology Features and Benefits:

Samsung / Osram 3535 LED, 2W /LED

LED distance 20cm

Distance between LED and poster not less than 8cm

Twice diffusing light design, super-wide-angle lens

Special radiator and long life more than 50,000 hours

Constant current 0.7A, same brightness on each LED

Modular design, easy installation and transportation

Guarantee 3 years in the correct manner, waterproof

Suitable for huge outdoor backlit billboard, shop head light box, large format vinyl light box, bus station light box, etc.

Advantages:

Easy to install: modular design, male and female head connection, high quality aluminum radiator

Low maintenance: 3 years warranty, almost no maintenance during the effective life

Low energy consumption: only about 40W/sq.m., 20-30% of conventional fluorescent light box

High light efficiency: imported high-grade Samsung LED chip, light efficiency up to 120lm/W

Even illuminating: specialized super-wide-angle diffusing lens, twice diffusing light design, light angle up to 175 degrees

Super long life: constant current working mode, triple heat dissipation design, more than 50000 hours

Safe and reliable: waterproof, IP65 available

Specification:

Note: Other sizes are available as demand.

Application:

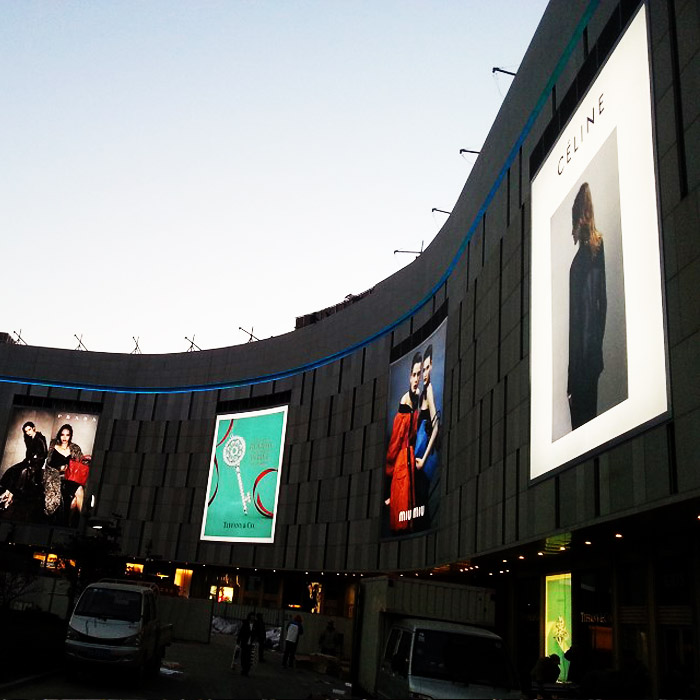

Backlit billboard, advertising light box at airports, malls, public transportation stops, gas stations, financial institutions, bars& restaurants, hotels, car dealerships, amusement parks and many other private and public places.

Our service

We can supply customized length of LED bar for backlit billboard, and reduce the installation time a lot.

FAQ:

1. Do you have any MOQ limit for the order?

A: No, we have no MOQ limit.

2. Do you supply constant voltage LED bar?

A: We supply constant voltage LED bar too.
