Even illuminating
High light efficiency
Easy to install
Low energy consumption
Low maintenance
Super long life
Safe and reliable

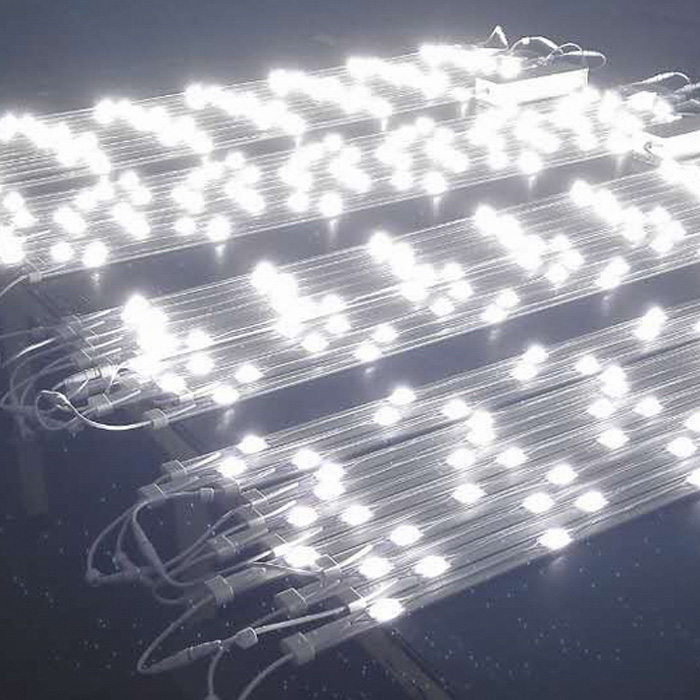

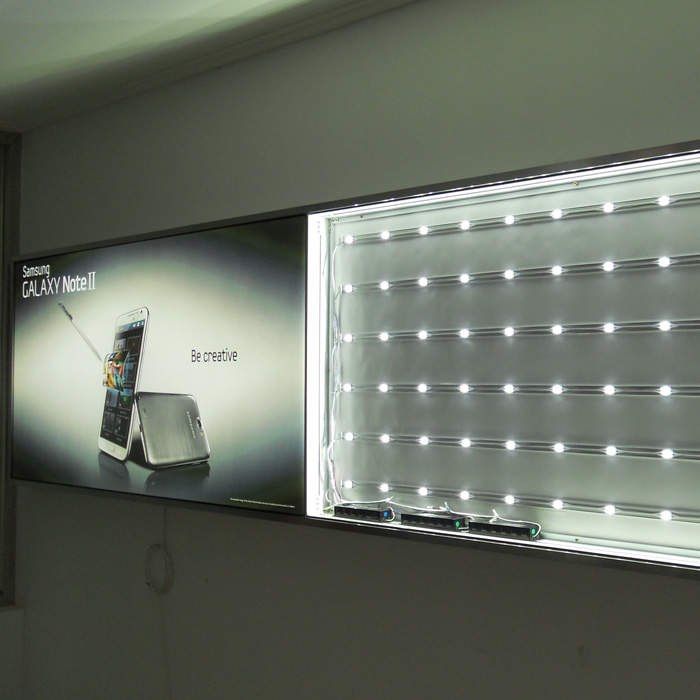

Backlit LED Bar For Light Box
In order to get better advertising effect and reduce the costs of light box, it is the best choice to use backlit LED bar for light box. The super-wide-angle diffusers offer even illuminating. Modular LED bar reduces the installation time and maintenance time. Constant current working mode ensures high light efficiency and save energy. Fine-tuned color temperature can present high quality images with brilliant true colors.
Advantages:
Even illuminating: specialized super-wide-angle diffusing lens, twice diffusing light design, light angle up to 175 degrees
High light efficiency: imported high-grade Samsung LED chip, light efficiency up to 120lm/W
Easy to install: modular design, male and female head connection, high quality aluminum radiator
Low energy consumption: only about 40W/sq.m., 20-30% of conventional fluorescent light box
Low maintenance: 3 years warranty, almost no maintenance during the effective life
Super long life: constant current working mode, triple heat dissipation design, more than 50000 hours
Safe and reliable: waterproof, IP65 available
Product detail:
|
Model Number: |
ST-BL20-2P |
|
Working Type: |
Constant current, 0.7A |
|
LED chip: |
Samsung SMD3535 LED |
|
LED Power: |
2W |
|
Color Temperature: |
6000 ± 500K |
|
LED distance: |
20cm |
|
Lifetime: |
More than 50,000 hours |
|
Unique feature: |
Constant current working mode, specialized super-wide-angle diffusing lens, twice diffusing light design, modular design, male and female head connection |
|
Distance between LED and backlit poster: |
Not less than 8cm, suitable for 10 -- 25cm thickness light box, especially for mega indoor or outdoor advertising light box |
|
Waterproof: |
Yes |
Specification:
|
Art. No. |
Color
Temperature |
Constant Current (A) |
Light Angle |
Luminous
Flux |
LED Qty |
Length |
|
ST-BL20-600 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
3 |
600 |
|
ST-BL20-800 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
4 |
800 |
|
ST-BL20-1000 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
5 |
1000 |
|
ST-BL20-1200 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
6 |
1200 |
|
ST-BL20-1400 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
7 |
1400 |
|
ST-BL20-1800 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
9 |
1800 |
Note: Other sizes are available as demand.
Application:

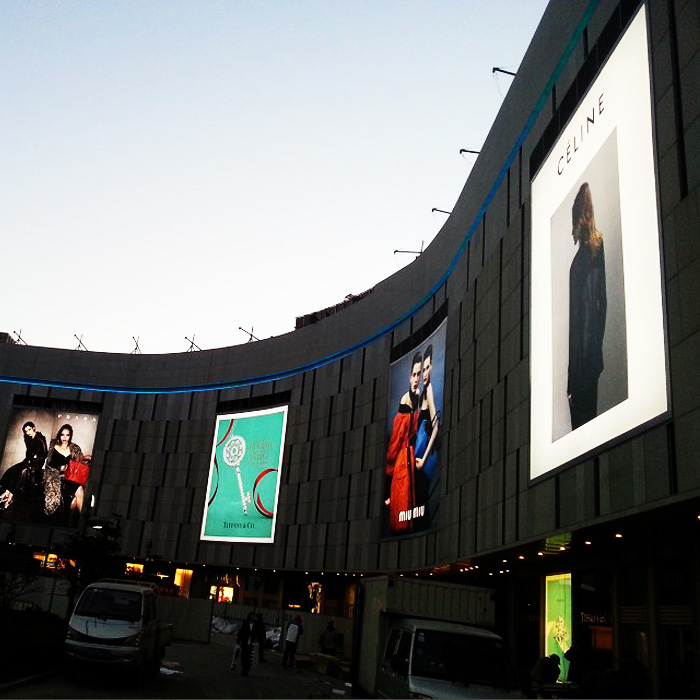

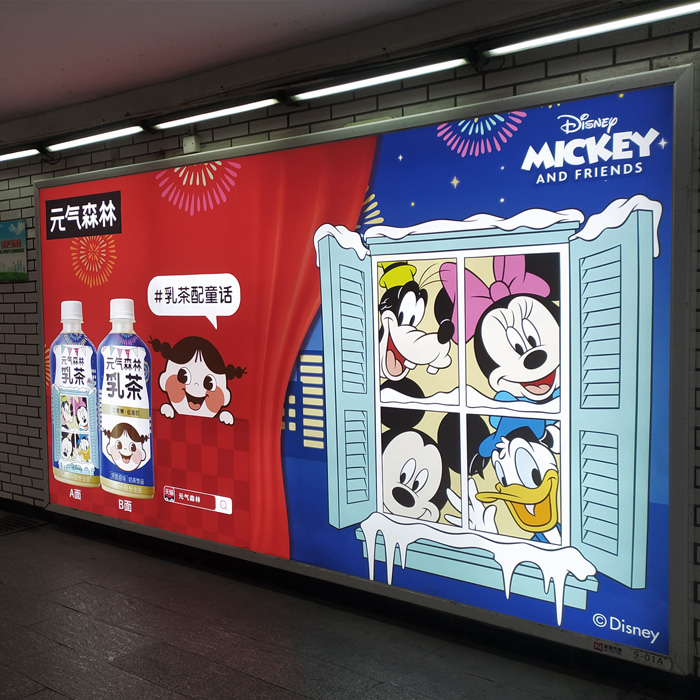

Backlit sign, Vinyl banner light box, outdoor huge advertising light box, cinema light box, backlit billboard, backlit signs, single-sided/double-sided light box, illuminated signage, etc.
Packing and delivery
Packaging details: Air bubble film, corrugated carton, pallet and wooden box are available.
Delivery time: About 3 - 10 working days.
Port: Shanghai/Ningbo/Hangzhou
Why choose SUNTOLE?
We are a professional manufacturer.
We have advanced light guide panel engraving technology--- CNC Laser Micro-Dot
Engraving.
We lead and popularize the constant current backlit LED bar.
FAQ：
1: Do you offer guarantee for the LED bar?
A: Yes, we offer 3 years warranty in the correct manner.
2. Could I visit your factory?
A: We welcome our customers to visit us, and develop business together.
Suntole/Lepu specializes in high-quality, cost-effective illuminated signage. We provide light boxes, illuminated signage, backilit/edge-lite LED bars, LED light panel, display and fixture solutions.
