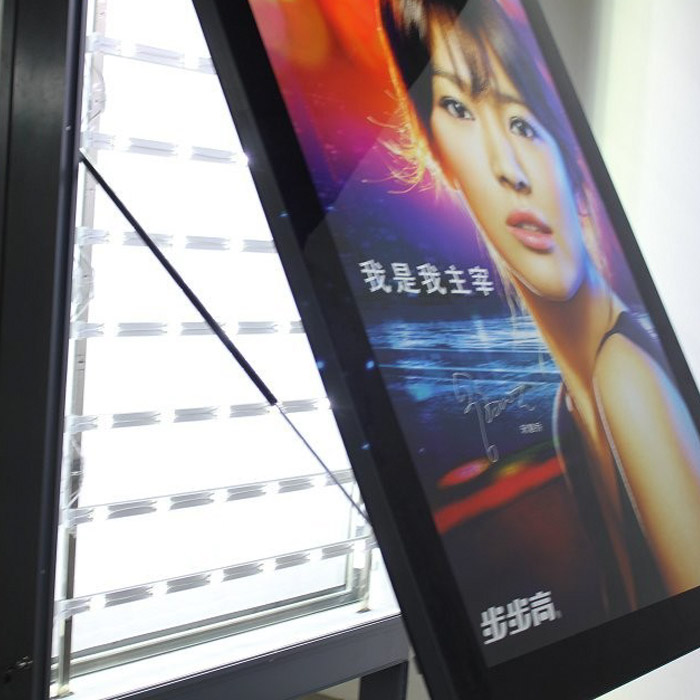

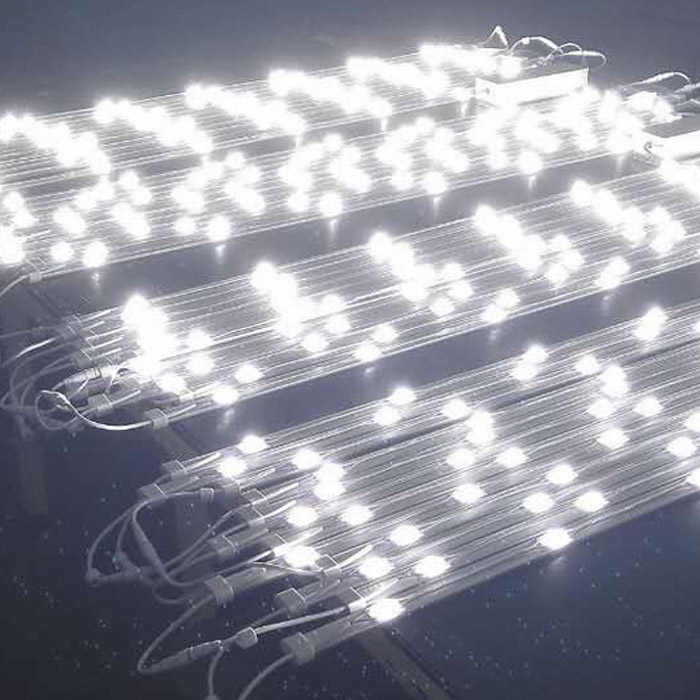

LED Backlight Bar For Light Box

As for the light box, the LED backlight bar still is the best light source. Because the LED backlight bar for light box has super-wide-angle diffusing lens. Its illuminating is very symmetrical while achieving high bright. Its modular design shortens the installation time a lot and let the replacement become very simple.

Advantages:

Even illuminating: specialized super-wide-angle diffusing lens, twice diffusing light design, light angle up to 175 degrees

High light efficiency: imported high-grade Samsung LED chip, light efficiency up to 120lm/W

Easy to install: modular design, male and female head connection, high quality aluminum radiator

Low energy consumption: only about 40W/sq.m., 20-30% of conventional fluorescent light box

Low maintenance: 3 years warranty, almost no maintenance during the effective life

Super long life: constant current working mode, triple heat dissipation design, more than 50000 hours

Safe and reliable: waterproof, IP65 available

Specification:

Note: Other sizes are available as demand.

Application:

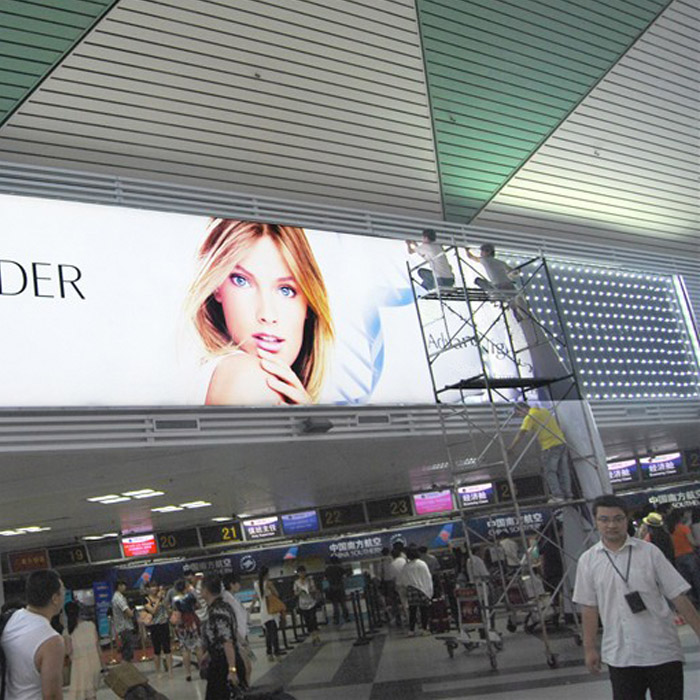

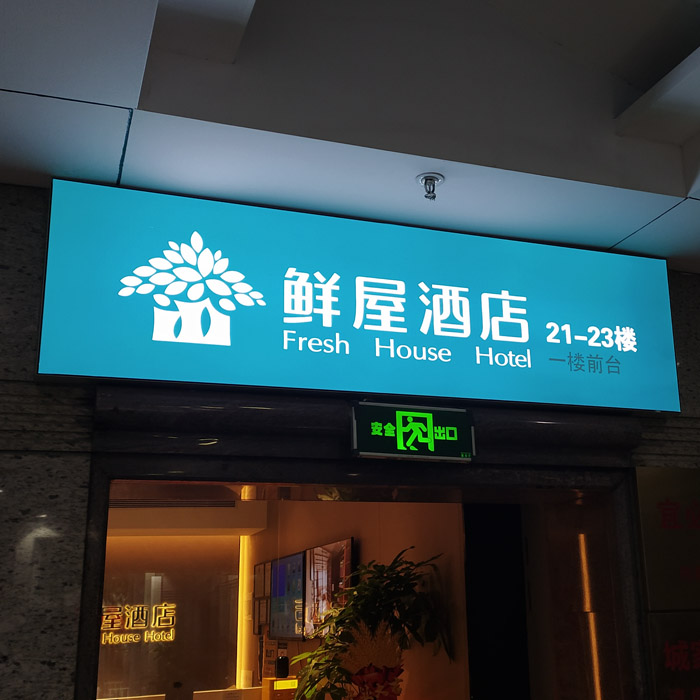

Backlit sign, Vinyl banner light box, outdoor huge advertising light box, cinema light box, backlit billboard, backlit signs, single-sided/double-sided light box, illuminated signage, etc.

Installation Direction:

1.Only use matched adapter;
2. Avoid to fall to the ground and impact;
3. Connect accurately input and output, positive pole and negative pole;
4. LED strips suggested distance 180---250mm, far from the backlit poster not less than 80mm;
5. Last LED strip’s positive pole and negative pole connected by shortcut head;
6. LED strip should be fixed hard by screw or plastic tie;
7. Power turn-on only after all connections are finished accurately; power turn-off before any checking.
8. White inside or additive reflective film in light box are suggested

Why choose SUNTOLE?

We are a professional manufacturer.
We have advanced light guide panel engraving technology--- CNC Laser Micro-Dot Engraving.

We lead and popularize the constant current backlit let bar.
We have a professional and experienced team.
We have a strong customer-oriented approach and a detail-focused practice.
We offer illuminated signage solutions, customized services, quick response and fast delivery

FAQ:

1. How will I get your help if I meet problem while using your products?

A: You could tell us the detailed problem with photos or video, our technician will analyze the problem and offer solving guidance.

2. Do you have installation guidance for the LED bar?

A: Yes, we have.

3: Do you offer guarantee for the LED bar?
A: Yes, we offer 3 years warranty in the correct manner.
