Symmetrical illuminating
Low energy consumption
High light efficiency
Super long life
Easy to install
Low maintenance
Safe and reliable
Diffusing LED Strip For Light Box

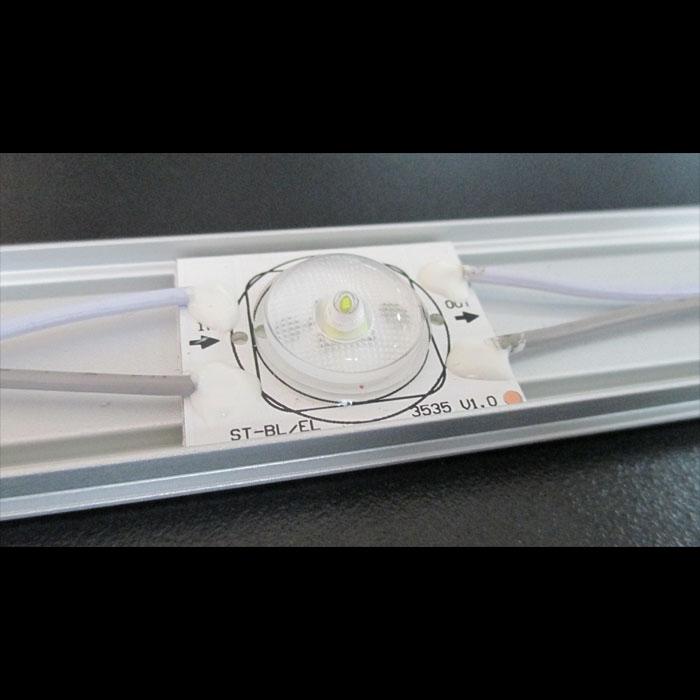

Diffusing LED strip for light box has special super-wide-angle acrylic diffuser, which diffuse the LED light second in order to get more even backlight illuminating. Thus there is no hotspot, dim area and streak in the surface of light box and target advertising effect will be achieved. After long-term development and selection, the effective diffusing light angle of SUNTOLE backlit diffuser could be 170° ± 5° now. Diffusing LED strip for light box can be used for advertising light box, backlit sign, etc.
Advantages:
Symmetrical illuminating: specialized super-wide-angle diffusing lens, twice diffusing light design, light angle up to 175 degrees
Low energy consumption: only about 40W/sq.m., 20-30% of conventional fluorescent light box
High light efficiency: imported high-grade Samsung LED chip, light efficiency up to 120lm/W
Super long life: constant current working mode, triple heat dissipation design, more than 50000 hours
Easy to install: modular design, male and female head connection, high quality aluminum radiator
Low maintenance: 3 years warranty, almost no maintenance during the effective life
Safe and reliable: waterproof, IP65 available
Product detail:
|
Model Number: |
ST-BL20-2P |
|
Working Type: |
Constant current, 0.7A |
|
LED chip: |
Samsung SMD3535 LED |
|
LED Power: |
2W |
|
Color Temperature: |
6000 ± 500K |
|
LED distance: |
20cm |
|
Lifetime: |
More than 50,000 hours |
|
Unique feature: |

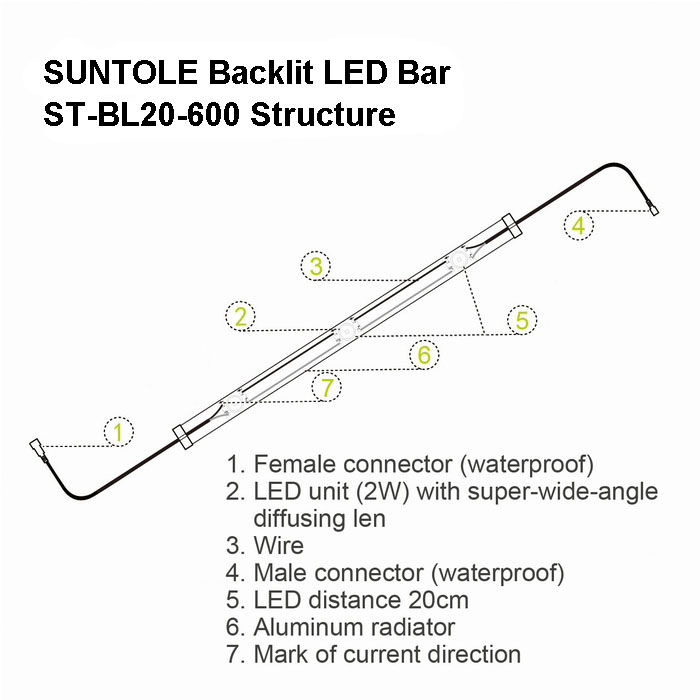

Constant current working mode, specialized super-wide-angle diffusing lens, twice diffusing light design, modular design, male and female head connection |
|
Distance between LED and backlit poster: |
Not less than 8cm, suitable for 10 -- 25cm thickness light box, especially for mega indoor or outdoor advertising light box |
|
Waterproof: |
Yes |
Specification:
|
Art. No. |
Color
Temperature |
Constant Current (A) |
Light Angle |
Luminous
Flux |
LED Qty |
Length |
|
ST-BL20-600 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
3 |
600 |
|
ST-BL20-800 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
4 |
800 |
|
ST-BL20-1000 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
5 |
1000 |
|
ST-BL20-1200 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
6 |
1200 |
|
ST-BL20-1400 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
7 |
1400 |
|
ST-BL20-1800 |
6500 ± 500K |
0.7 |
170° ± 5° |
210 |
9 |
1800 |
Note: Other sizes are available as demand.
Application:

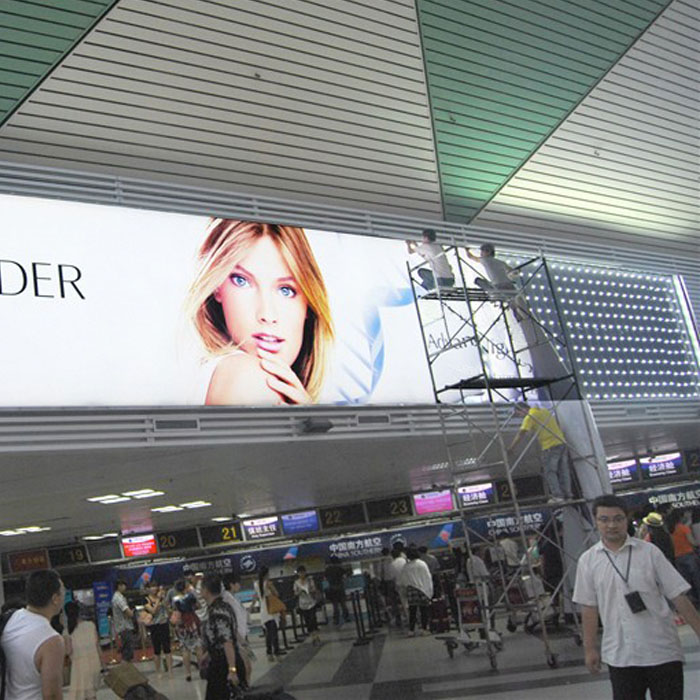

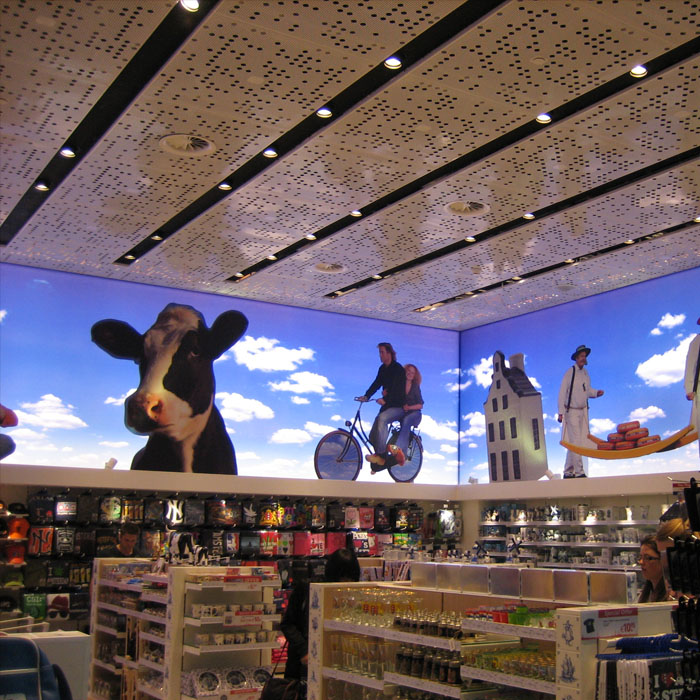

Backlit sign, Vinyl banner light box, outdoor huge advertising light box, cinema light box, backlit billboard, backlit signs, single-sided/double-sided light box, illuminated signage, etc.
Why choose SUNTOLE?
We are a professional manufacturer.
We have advanced light guide panel engraving technology--- CNC Laser Micro-Dot
Engraving.
We lead and popularize the constant current
backlit LED strip.
We have a professional and experienced team.
We have a strong customer-oriented approach and a detail-focused practice.
FAQ：
1: Do you offer guarantee for the LED
strip?
A: Yes, we offer 3 years warranty in the correct manner.
2. Do you have installation guidance for the LED strip?
A: Yes, we have.
3. How could I calculate LED strips for a light box?
A: First, choose suitable length of LED strips according to the size of light box.
Second, calculate needed quantities of LED strips according to needed LED strip distance between 18—25cm.
At last, choose suitable adapters.
4. Could you supply constant voltage LED
strips?
A: Yes, we can.
Suntole/Lepu specializes in high-quality, cost-effective illuminated signage. We provide light boxes, illuminated signage, backilit/edge-lite LED bars, LED light panel, display and fixture solutions.
