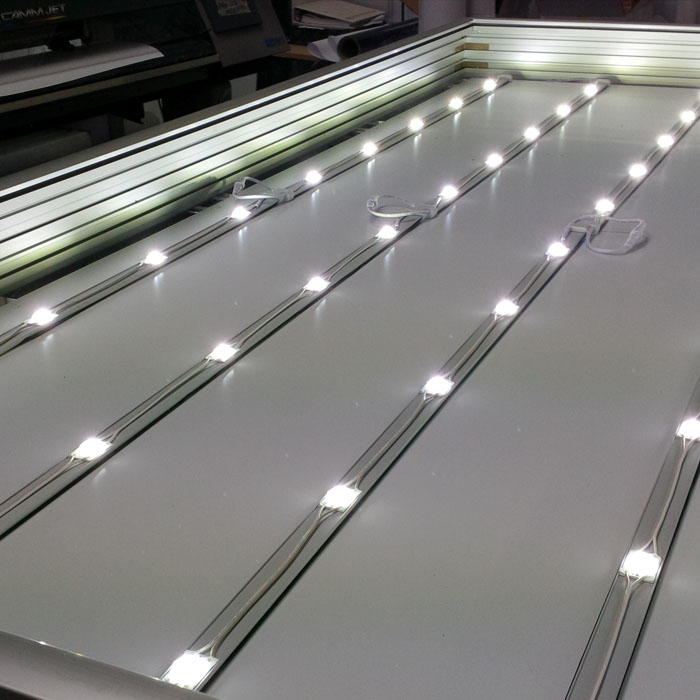

LED Rigid Strip For Light Box

LED rigid strip for light box is a reactive LED strip. The LEDs are fixed on the rigid aluminum bar. The rigid aluminum bar not only holds the LEDs in the same distance, but also help the LEDs to dissipate heat. So the installation of LED rigid strip for light box become very easy. And good heat dissipation will ensure the LEDs to work stably and prolong their life time.

Advantages:

Easy to install: modular design, male and female head connection, high quality aluminum radiator

Low maintenance: 3 years warranty, almost no maintenance during the effective life

Even illuminating: specialized super-wide-angle diffusing lens, twice diffusing light design, light angle up to 175 degrees

Low energy consumption: only about 40W/sq.m., 20-30% of conventional fluorescent light box

High light efficiency: imported high-grade Samsung LED chip, light efficiency up to 120lm/W

Super long life: constant current working mode, triple heat dissipation design, more than 50000 hours

Safe and reliable: waterproof, IP65 available

Product detail:

Specification:

Note: Other sizes are available as demand.

Application:

Backlit sign, Vinyl banner light box, outdoor huge advertising light box, cinema light box, backlit billboard, backlit signs, single-sided/double-sided light box, illuminated signage, etc.

Installation Guidance:

1.Only use matched adapter;
2. Avoid to fall to the ground and impact;
3.Connect accurately input and output, positive pole and negative pole;
4.LED strips suggested distance 180---250mm, far from the backlit poster not less than 80mm;
5.Last LED strip’s positive pole and negative pole connected by shortcut head;
6. LED strip should be fixed hard by screw or plastic tie;
7. Power turn-on only after all connections are finished accurately; power turn-off before any checking.
8.White inside or additive reflective film in light box are suggested

FAQ

1. Is it easy to use the LED strip?
A: We will offer detailed installation guidance for the first-time customer, help him to choose suitable LED strips and power drivers for the outdoor light box. For any problem, we will offer help in time.

2. Could you supply suitable transformer (adapter/power supplier/driver) for the LED strip?
A: We can supply suitable transformer (adapter/power supplier/driver) for the LED strip.

2. Could you supply constant voltage LED strips?
A: Yes, we can.
