Products

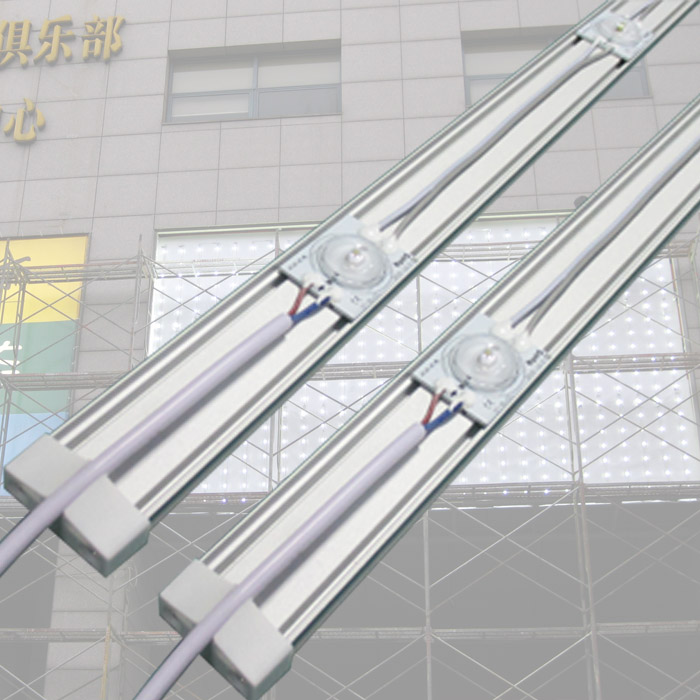

Diffusing Backlit LED Bar For Light Boxes

Diffusing backlit LED bar ST-BL20-2P solves the shortcomings of the existing lighting source, and provides customers with a practical and quick installing LED bar lighting source. Low energy consumption, high brightness, super-wide-angle diffuser, constant current working mode, quick installation and low maintenance, let it to be the best choice for light boxes, especially the outdoor large-size light boxes.

Advantages:

Low energy consumption: only about 40W/sq.m., 20-30% of conventional fluorescent light box

High light efficiency: imported high-grade Samsung LED chip, light efficiency up to 120lm/W

Even illuminating: specialized super-wide-angle diffusing lens, twice diffusing light design, light angle up to 175 degrees

Super long life: constant current working mode, triple heat dissipation design, more than 50000 hours

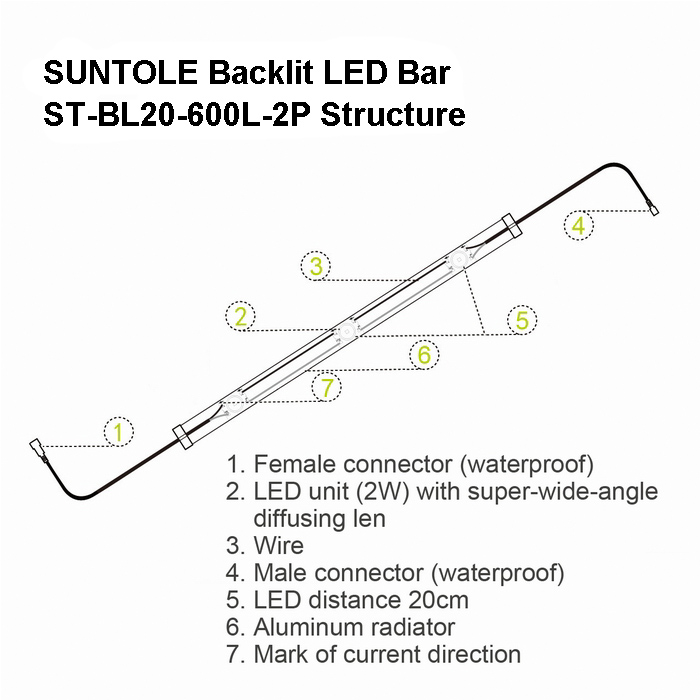

Easy to install: modular design, male and female head connection, high quality aluminum radiator

Low maintenance: 3 years warranty, almost no maintenance during the effective life

Safe and reliable: waterproof, IP65 available

Application:

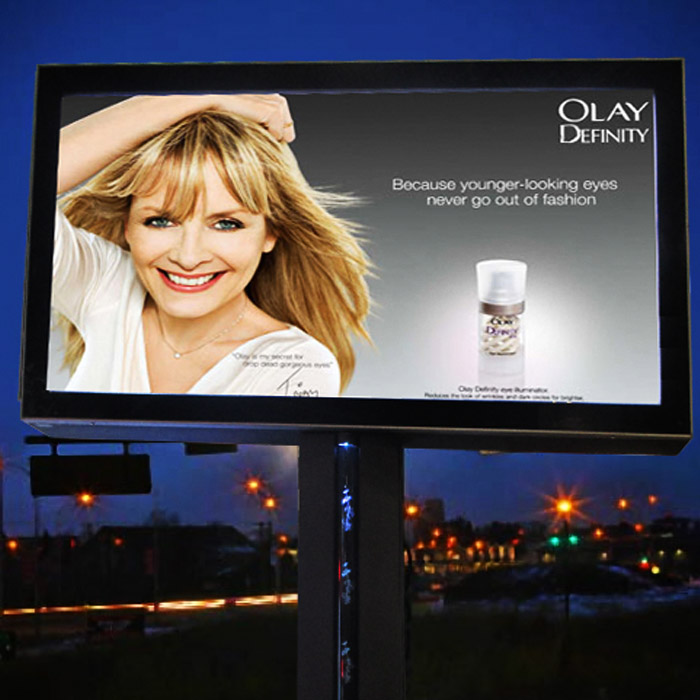

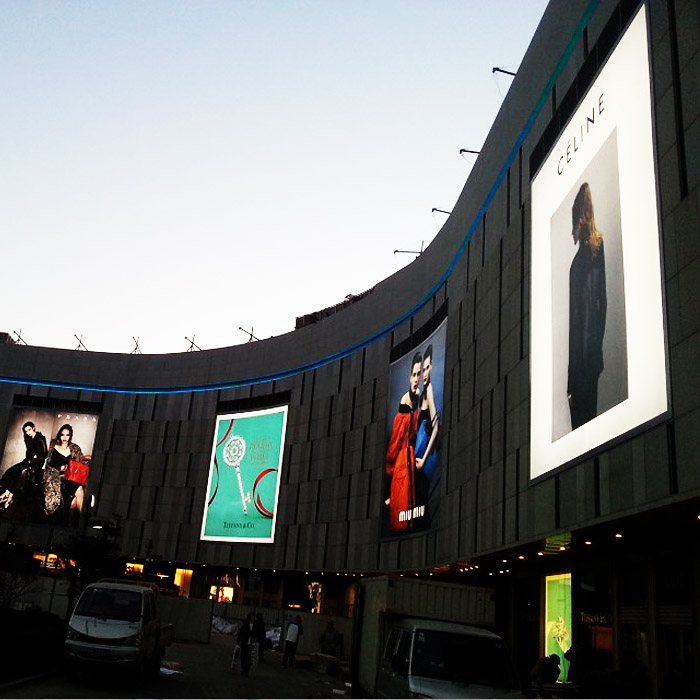

Diffusing backlit LED bar ST-BL20-2P can be used the outdoor backlit billboard, outdoor advertising light boxes, illuminated signage, indoor advertising light boxes, large light boxes, shop head light boxes, large format light boxes, vinyl banner light boxes, PVC banner light boxes, snap frame light boxes, etc.

Packing and delivery

Packaging details:

Air bubble film and carton. Each carton holds 36pcs. The plywood pallet and box are available as need.

Delivery time:

Sample:1-3 working days
Small bulk production: 5-8 working days
Big bulk production: 8-15 working days

Our service

Besides our existing products, SUNTOLE also can produce illuminated signage according to the drawings or samples from our customers. We offer the pre-sale consultation, sampling, testing, after-sale service, light box trouble analysis, technological guidance, installation guidance, maintenance guidance, and accessories timely supply.

FAQ

1. Are you a factory?

A: We are a factory, and we provide the OEM/ODM services.

2. Could I place a sample order for testing?

A: Yes, we could accept the sample order.

3. What about the lead time?

A: Usually it is 3 - 5 working days for the sample order, and 7 - 10 working days for bulk order.
